Emitter Parts Kit, 272

Emitter Parts Kit, 5-1/2 Turn Filament, 221/223
Emitter Parts Kit, 7-1/2 Turn Filament, Multi-Pocket

$425.00

This emitter parts kit is for the 253-0150-1 emitter assembly.
In Stock

SKU: 253-0700-1 Category:

Description

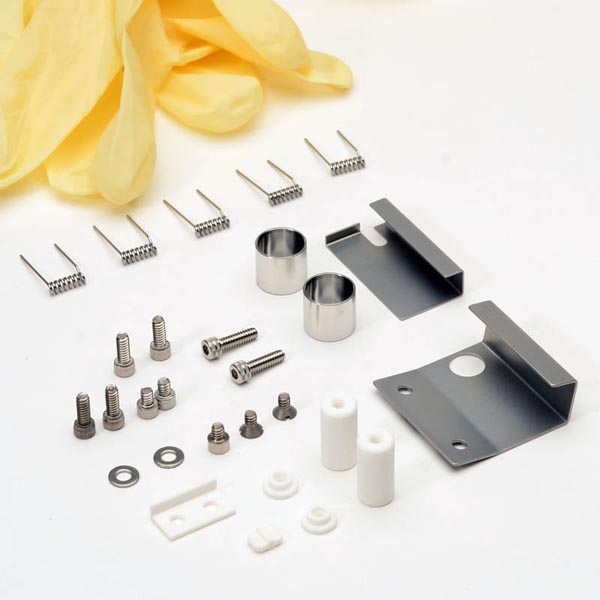

This electron beam source emitter parts kit includes the following parts:
1x 253-0003-1, Anode
1x 271-5003-1, Gloves, pr.
2x 271-6010-5, Screw, #6-32 X 1/4″ Slot Flat Head,Ti
2x 271-6020-1, Vented Screw, #6-32 X 3/16″ SST SHCS
1x 271-6020-5, Screw, #6-32 X 3/16″ Ti SHCS
4x 271-6050-1, Vented Screw, #6-32 X 3/8″ SST SHCS
2x 271-6060-1, Vented Screw, #6-32 X 1/2″ SST SHCS
5x 273-0001-1, Filament, 7-1/2 Turn
1x 273-0004-2, Beam Former
1x 273-0005-1, Insulator, Cross
2x 273-0006-1, Insulator, Collar
1x 273-0008-1, Insulator, L
2x 273-0010-1, Insulator, HV
2x 273-0011-1, HV Shield

Additional information

Weight 0.2 lbs
Dimensions 2.5 × 3 × 1.2 in
