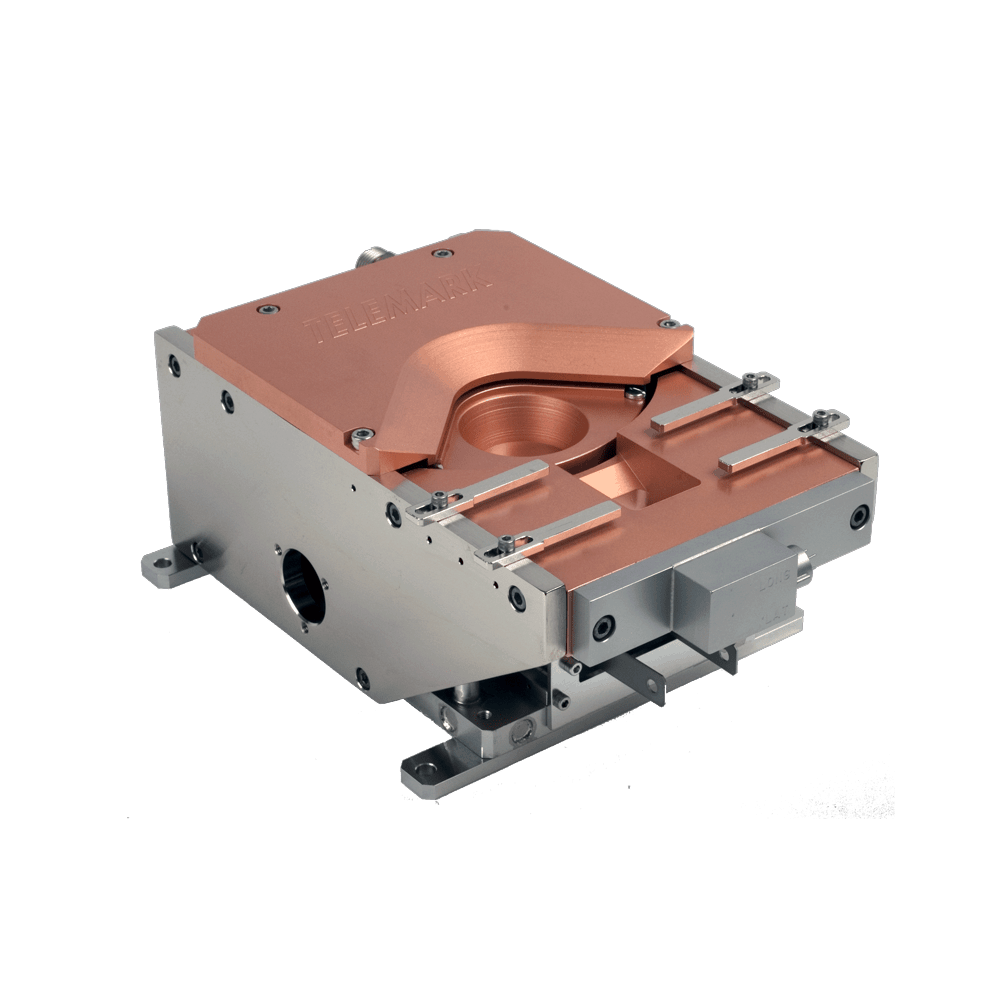

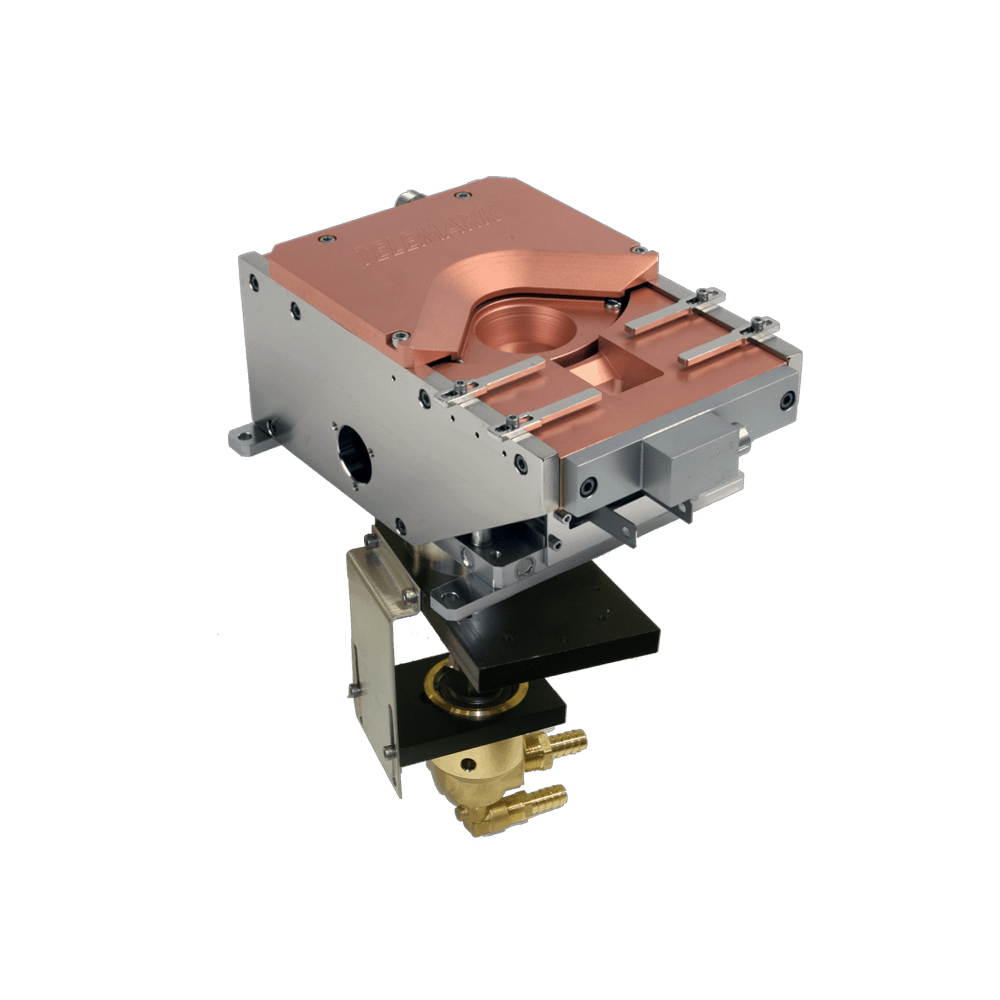

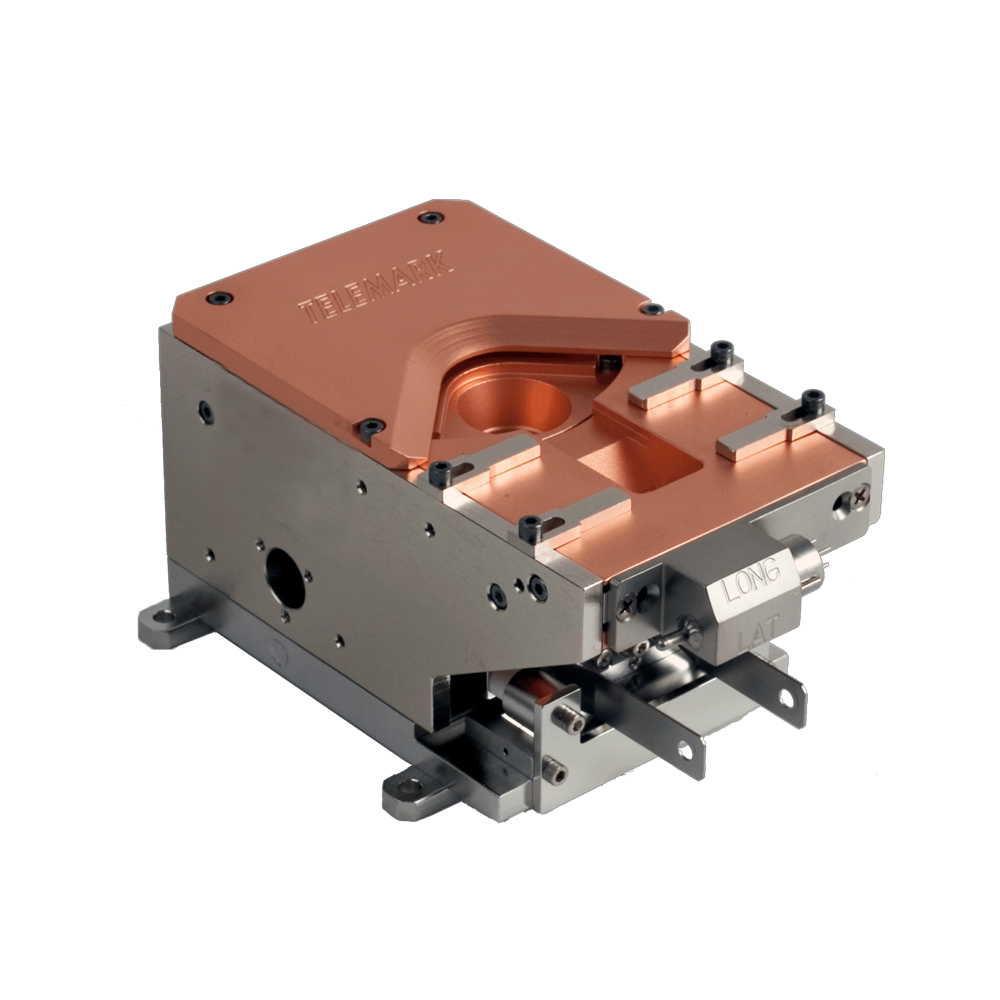

Telemark Model 264 E-Beam Source

Telemark offers the largest selection of multi-pocket electron beam sources on the market. Pocket sizes from 2cc to 100cc are available. Vacuum compatibility selections from 10-7 torr to 10-9 torr offer customers a one stop shop for all your multi-pocket source needs. Utilizing 270⁰ beam deflection, the Telemark sources are state-of-the-art in E-beam technology. Source options include traditional O-ring style or magnetic fluid feedthrough rotation. Installation kits, source shutters and pocket indexers can be supplied. Please contact Telemark with your ebeam source requirements for model and configuration assistance.

  • ROTATABLE HEARTH IS REMOVABLE FOR EASY CLEANING OR CHANGING OF CRUCIBLES
  • 270° beam deflection (Hidden Filament)
  • Proprietary, patented water cooling design means longer crucible life and more consistent evaporation of material
  • Rugged, reliable construction
  • Designed for ease of use and maintainability
  • Permanent magnet for primary beam positioning to provide improved control of evaporation process

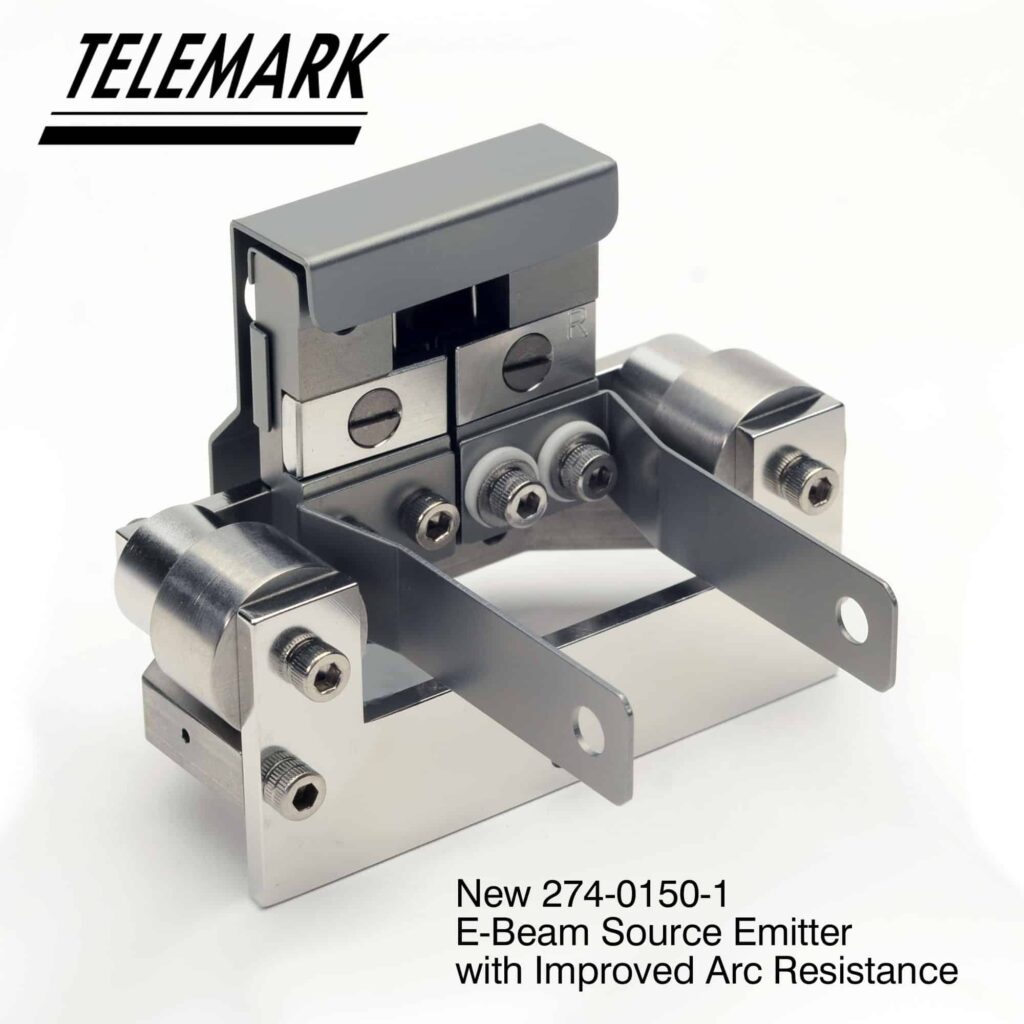

  • Durable emitter assembly with unique design for increased filament life and simple maintenance
  • Plug-in emitter assembly for easy filament replacement
  • Side or bottom crucible rotation drive
  • Integral rotation feedthrough on models 246/266/276/296 eliminates water to vacuum seal
  • Most components are maintained in stock
  • A Source can normally be delivered in one-two weeks ARO

Improved Source Magnetics Reduce Beam Curl

Telemark Improved Source Magnetics

Telemark Improved Source Magnetics

A range of new sources have been introduced which incorporate a significant change from the traditional magnetic field design, providing a much straighter beam path through the melt material, thus increasing the usable portion of the melt inventory and producing a more uniform and predictable evaporant cloud. These sources can be supplied with the optional Arc-Suppression or self-sealing cover plate.

Model 295 Large Capacity, Multi-Pocket Source

Telemark Model 295 E-Beam Source

Model 295 E-Beam Source

For applications requiring large evaporation materials inventory (e.g. multiple or thick layers, extended throw distances) the Model 295 Source provides a wide range of crucible sizes including 6x100cc, 16x15cc, 10x40cc, and a 1486cc trough. Available in 10Kw or 15Kw versions, with Arc-Suppression available as an option.

Source 221/224 Source 244/246 Source 264/266/274/276 Source 294/296 Source 295
E-Beam Deflection270°270°270°270°270°
Power Rating3 kW(221), 4 kW(224)*6 kW*10 kW*12 kW*10 kW* / 15 kW*
High Voltage Range-5 kV to -7 kV-6 kV to -10 kV-6 kV to -10 kV-6 kV to -10 kV-6 kV to -10 kV
Lateral Coil Resistance8.5 ohms (244)8.5 ohms3.0 ohms3.0 ohms3.0 ohms
Long. Coil Resistance7.5 ohms (244)7.5 ohms9.6 ohms9.6 ohms9.6 ohms
Water Requirements2 gpm(min.)@ 60°F2 gpm(min.)@ 60°F3 gpm(min.)@ 60°F5 gpm(min.)@ 60°F5 gpm(min.)@ 60°F

*Nominal value; actual power rating may vary, depending on customer’s process.

Side / Bottom 221 Side / Bottom 224 Side / Bottom 244/246 Side / Bottom 264/266 Side / Bottom 274/276 Side / Bottom 294/296 Side / Bottom 295
4 x 2cc-05 / -06
4 x 4cc-63 / -64-63 / -64
4 x 7cc-27 / -28-27 / -28-27 / -28
4 x 15cc-01 / -02-01 / -02
4 x 25cc-07 / -08-07 / -08
4 x 30cc-19 / -20-19 / -20-19 / -20
4 x 40cc w/web-61 / -62
4 x 40cc w/o web-45 / -46-44 / -45
2x15cc / 2x25-37 / -38
6 x 4cc-65 / -66
6 x 7cc-05 / -06-05 / -06-05 / -06
6 x 15cc-11 / -12-11 / -12-11 / -12
6 x 25cc-17 / -18-17 / -18
6 x 30cc-75 / -76
6 x 40cc-69 / -70
6 x 100cc (10kW*)-51 / -52
6 x 100cc (15kW*)-01 / -02
2x7cc / 4x15cc-29 / -30
4x4cc / 2x15cc-09 / -10
8 x 7cc-13 / -14-13 / -14
8 x 15cc-01 / -02
8 x 25cc-07 / -08
10 x 40cc (10kW*)-71 / -72
16 x 25cc (10kW*)-73 / -74
20 x 15cc (10kW*)-21 / -22
Trough, 190cc-15 / -16
Trough, 275cc-31 / -32
Trough, 440cc-79 / -80
Trough, 1486cc(10kW*)-91 / -92

Telemark Crucible Types

Crucible Types

Arc Suppression Upgrade

Telemark Arc-Suppression

A source with the Arc-Suppression option is ideal for many applications, such as for optical coating and for ion plating without a pressure barrier. The reduction in arcing results in improved film quality, improved yields, and fewer arc-related maintenance issues.



Self-Sealing Cover Upgrade

Self Sealing E-Beam Cover

An optional self-sealing cover plate is available for applications where cross contamination between materials is a concern.

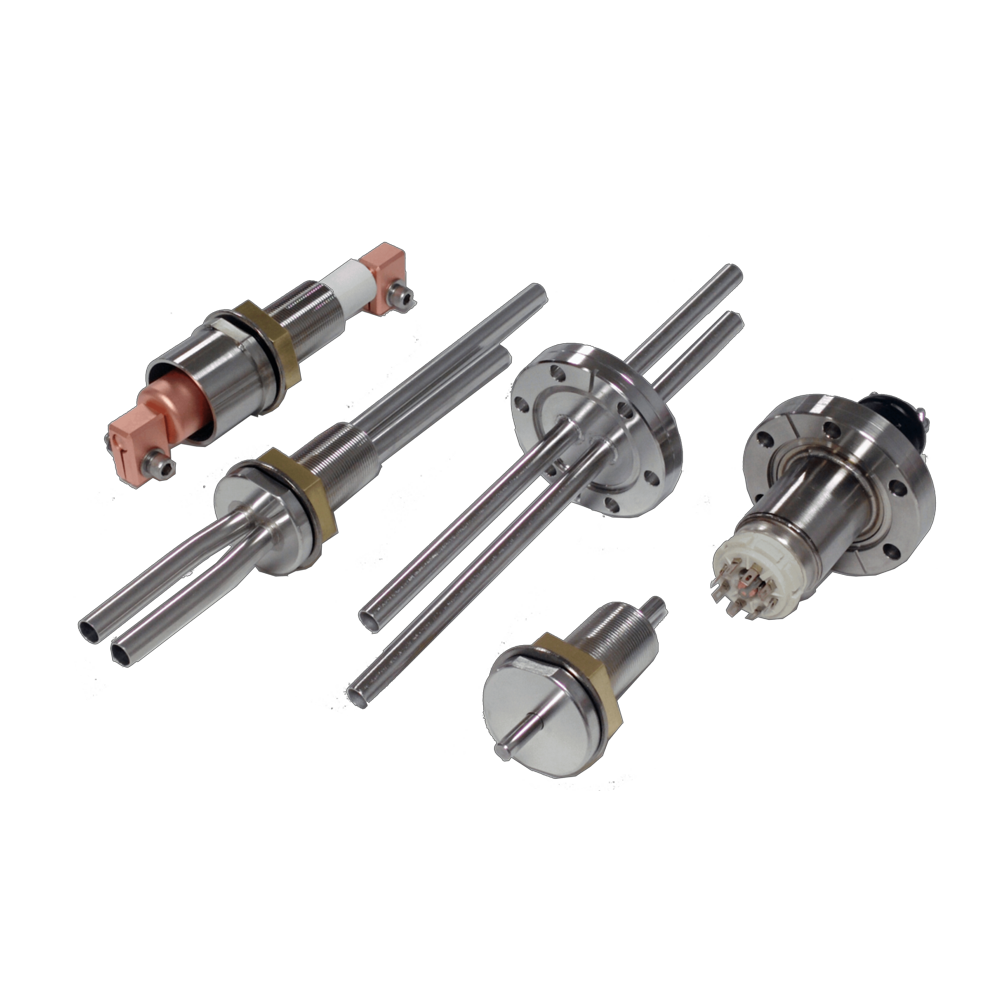

Telemark Feedthroughs

Feedthroughs

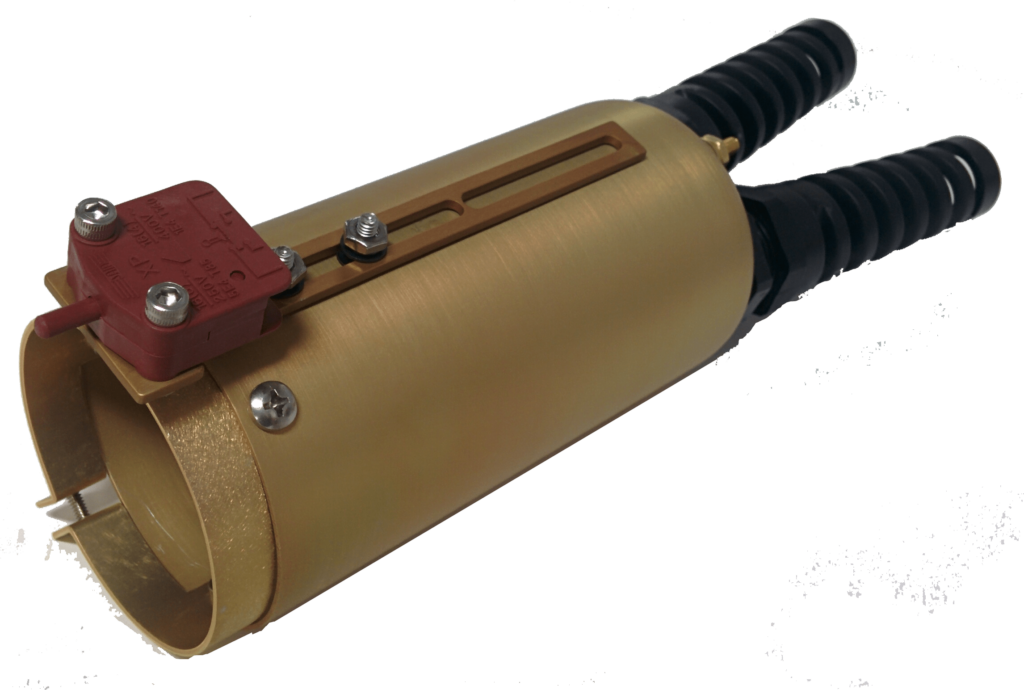

Telemark HV Feedthrough Cover

HV Feedthrough Cover

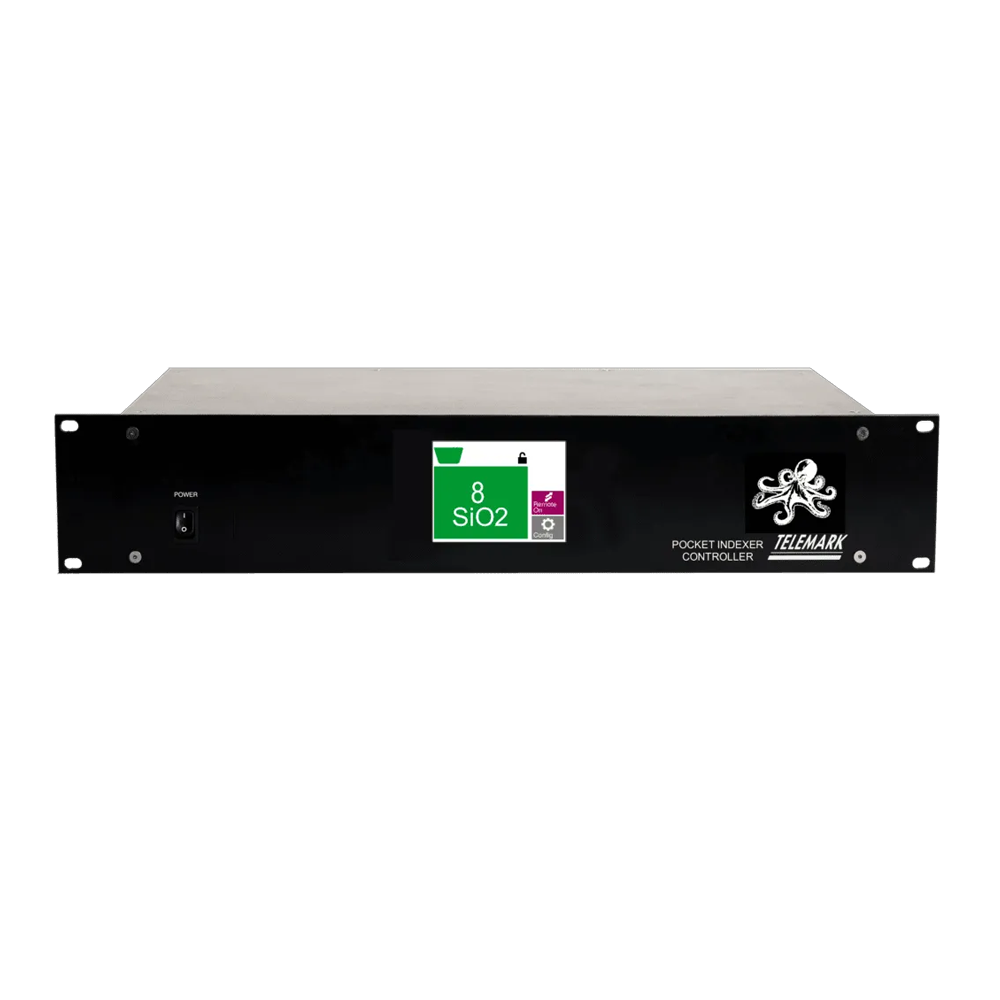

Telemark Crucible Indexer Controller

Crucible Indexer Controller


Telemark Water Flow Switch

Water Flow Switch

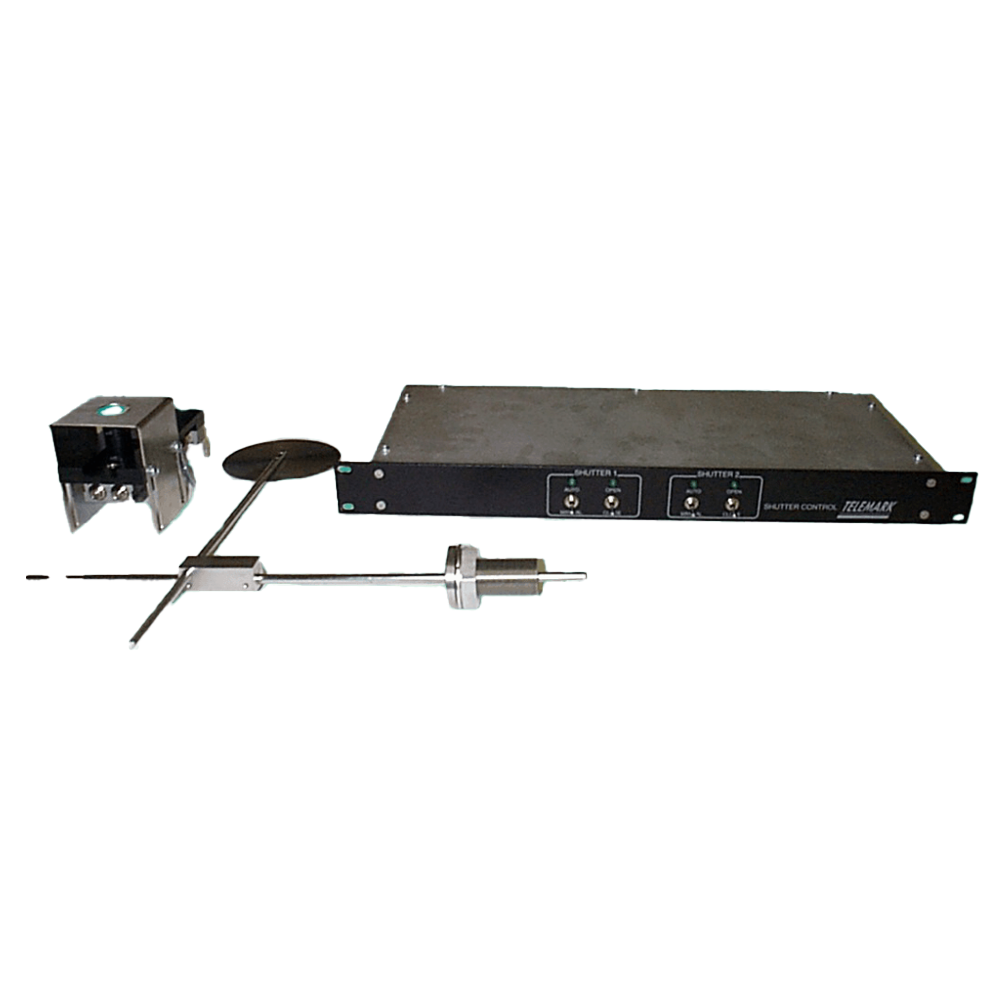

Telemark E-Beam Shutter

E-Beam Shutter

Electro-Pneumatic shutter controls are available with 1″, 32mm, or 2-3/4″ CFF feedthrough shutter assemblies.
