Compact Linear UHV Sources

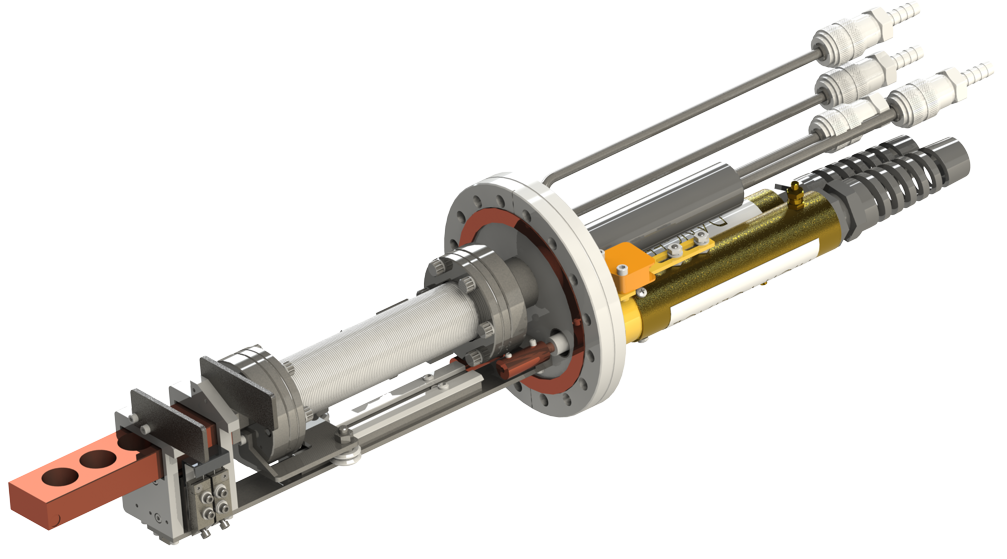

The model 539 is mounted on a 6-inch CF flange with 4cc pockets and no sweep coils. It is available in 3, 4, 5, and 6 pocket configurations and is ideal for research and development applications.
Brochures
Manuals
detailed information
- Mounted on 6” CF (optional CF flange configurations available)
- Pumps down to 10-11 torr
- No sweep coils
- Designed for ease of use and maintainability
- Long filament life with 270° beam deflection
| Model 539 | |
|---|---|
| E-Beam Deflection | 270° |
| Power Rating | 4 kW |
| High Voltage Range | -5 kV to -7 kV |
| Filament Power | Up to 575mA at -7kV |
| Water Requirements | 2 gpm(min.)@ 60°F |
| Bake Out Temperature | 250°C |
| Crucible Volume | 4cc |
| Model 539 | |
|---|---|
| 3 pocket 4cc | 539-03 |
| 4 pocket 4cc | 539-04 |
| 5 pocket 4cc | 539-05 |
| 6 pocket 4cc | 539-06 |
