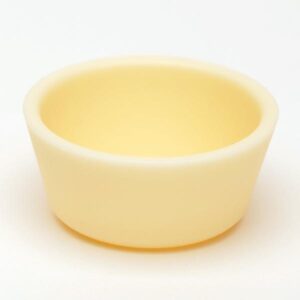

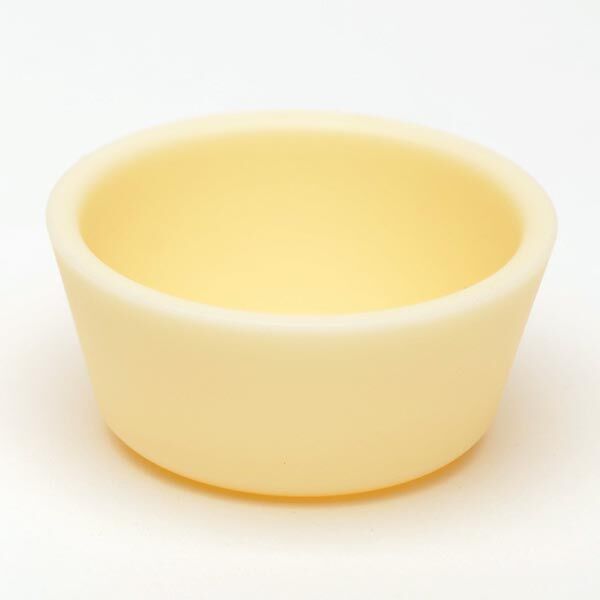

Crucible Liner, Aluminum Oxide, Al2 O3
99.8% pure Alumina (Al2 O3) crucible liner inserts. Sizes available 1.8cc, 4cc, 7cc, 15cc, 25cc Standard Shallow, 25cc Deeper Version, 30cc with Web, 30cc w/o Web, 40cc, and 100cc. Consult factory for price and availability.
Description
Recommended for CdSe, Co, Ga, Ge, GeO2, In2O3, Fe, Li, LiF, Mg, MgO, Mn, Nd, NiCr, Ni, Pd, Permalloy, SnO2, and Y.
| Wall Thickness (inch) | Liner Volume (cc) | |
|---|---|---|
| 1.8cc | 0.093 | 0.7 |
| 4cc | 0.093 | 2.0 |
| 7cc | 0.093 | 3.5 |
| 15cc | 0.093 | 9.5 |
| 25cc, Shallow | 0.093 | 17.0 |
| 25cc, Deep | 0.093 | 15.9 |
| 30cc with Web | 0.093 | 21.1 |
| 30cc without Web | 0.093 | 20.7 |
| 40cc | 0.125 | 26.9 |
| 100cc | 0.093 | 81.2 |
All wall angles are 15 deg.
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| size | 1.5cc, 100cc, 15cc, 25cc Deep, 25cc Shallow, 30cc w/o web, 30cc w/web, 40cc, 4cc, 7cc |
