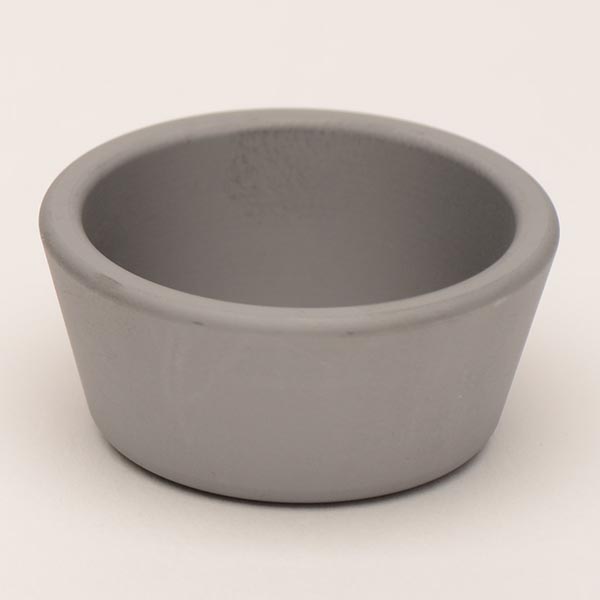

Crucible Liner, Reinfiltrated graphite
Price range: $180.00 through $950.00
Highly densified and purified graphite undergoes a special surface treatment with amorphous carbon. Consult factory for price and availability for 1.8cc, 30cc w/o Web, and 160cc liners.
Description
Recommended Graphite replacement, as well as for Al, Cr, Ge, Au, HfO2, MgO, Mo, Pd, Sn and Ti.
| Wall Thickness (inch) | Liner Volume (cc) | |
|---|---|---|
| 4cc | 0.093 | 2.0 |
| 7cc | 0.093 | 3.5 |
| 15cc | 0.125 | 8.4 |
| 25cc, Shallow | 0.093 | 17.0 |
| 25cc, Deep | 0.093 | 15.9 |
| 30cc with Web | 0.093 | 21.1 |
| 30cc without Web | 0.093 | 20.7 |
| 40cc | 0.093 | 30.0 |
| 100cc | 0.093 | 81.2 |
| 160cc | 0.125 | 124.8 |
All wall angles are 15 deg.
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| size | 100cc, 15cc, 160cc, 25cc Deep, 25cc Shallow, 30cc w/o web, 30cc w/web, 40cc, 4cc, 7cc |
