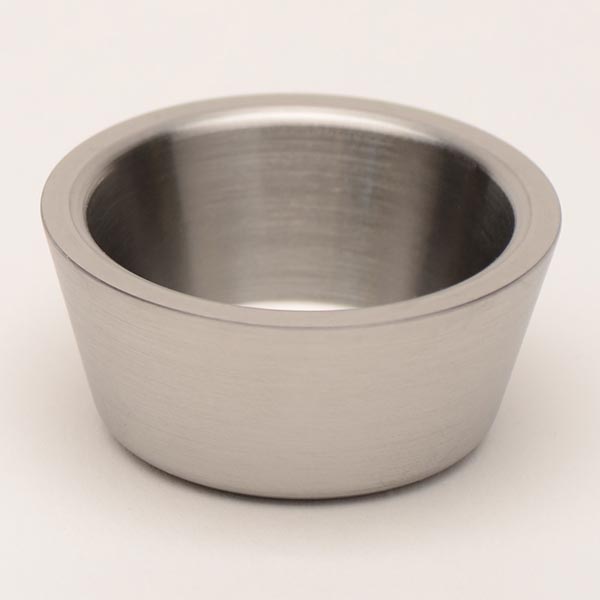

Crucible Liner, Tungsten
99.95% pure Tungsten (W) crucible liner inserts. Consult factory for price and availability for 1.5cc, 15cc, 25cc Deeper Version, 40cc and 100cc sizes. Consult factory for price and availability.
Description
Recommended for Au evaporation.
| Wall Thickness (inch) | Liner Volume (cc) | |
|---|---|---|
| 1.8cc | 0.093 | 0.7 |
| 4cc | 0.093 | 2.0 |
| 7cc | 0.093 | 3.5 |
| 15cc | 0.125 | 8.4 |
| 25cc, Shallow | 0.125 | 15.4 |
| 25cc, Deep | 0.125 | 14.4 |
| 30cc with Web | 0.125 | 18.7 |
| 30cc without web | 0.125 | 18.3 |
| 40cc | 0.125 | 26.9 |
| 100cc | 0.125 | 75.2 |
All wall angles are 15 deg.
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| size | 1.8cc, 100cc, 15cc, 25cc Deep, 25cc Shallow, 30cc w/o web, 30cc w/web, 40cc, 4cc, 7cc |
