Dual right angle sensor w/shutter w/CFF FT Kit

$5,850.00

Dual right angle sensor w/shutter 2-3/4 CFF (DN40CF) Quartz Crystal Sensor Head Kit
Contact Telemark for availability

SKU: 861-6220-4 Category:

Description

This sensor and feedthrough kit for Telemark quartz crystal thickness monitors and deposition controllers includes the following parts:
2x 861-0201-3, Crystal, 6MHz Gold Coated Sensing, 10ea
2x 880-2320-4, Internal Coax Cable, 30″ Micro-dot
1x 880-2401-5, Sensor Feedthrough, Dual with Shutter, 2-3/4″ CFF, UT
2x 880-2421-1, Cable, 6″ BNC M-M

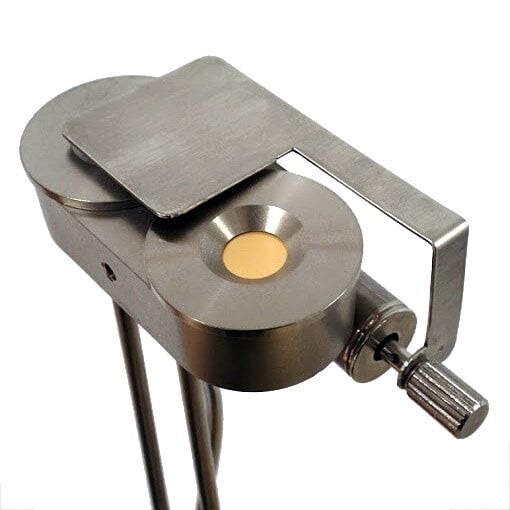

1x 880-3220-1, Dual right angle sensor w/shutter

thumbnail of R880-3220-1-crystal-sensor
880-3220-1, Crystal Sensor pdf

Additional information

Weight 1.63 lbs
Dimensions 30.5 × 4 × 3 in
