Quartz Crystal Deposition Controllers

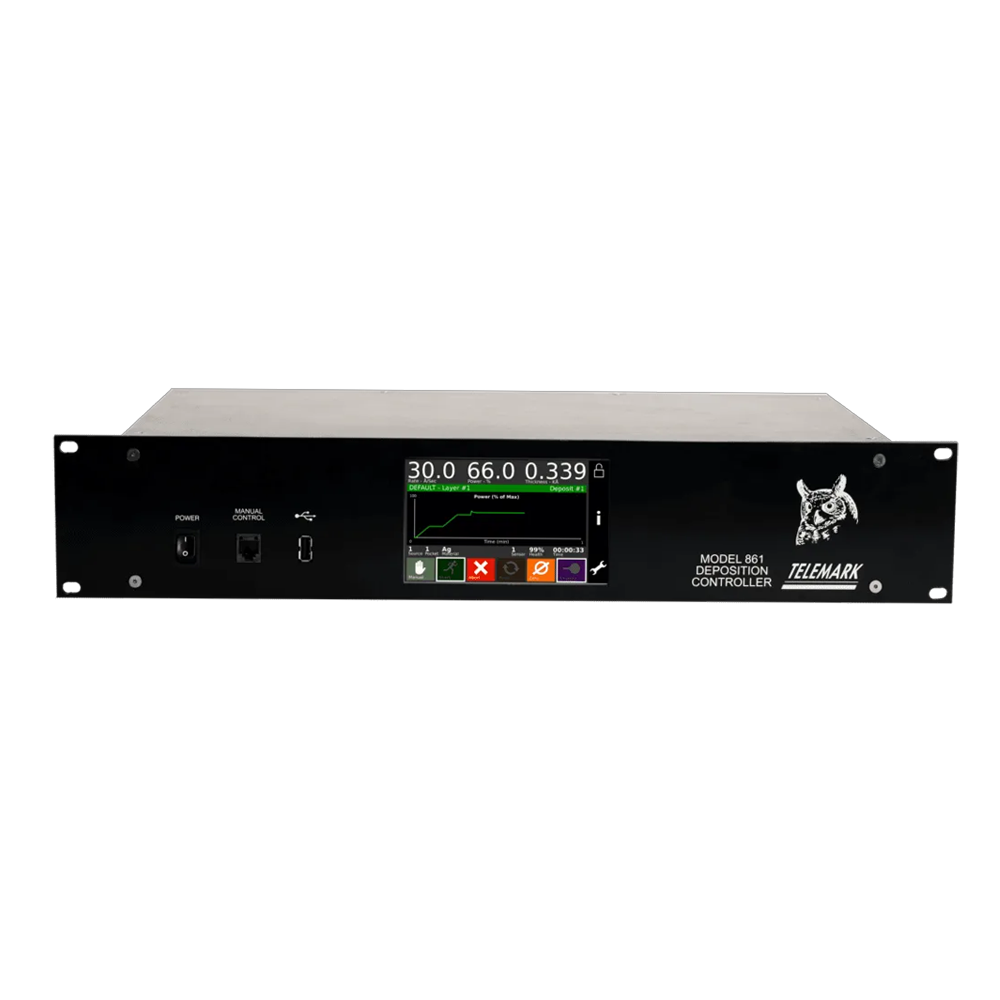

The Telemark 861 electron beam source quartz crystal (QCM) deposition controller is a drop-in replacement for the Maxtek 360 and Telemark 860 units. This controller provides pin for pin replacement for old Maxtek and Telemark units. Users can transfer existing processes and setup configurations from old units directly to the 861. The 861 is also an excellent replacement for the IC6, IC5, XTC3, XTC2, SQC-310 and IC6000.
- Modern color LCD touch screen interface with support for I/O upgrades and additional sensor heads—ideal for system upgrades and OEM users.
- Includes an extensive material library and support for user-definable materials.
- Storage capability for 99 processes, each with up to 999 layers.
- Proprietary oscillator for 5 MHz or 6 MHz operation with high resolution of < 0.01Å.
- Standard configuration includes:
- 2 sensor inputs (upgradable to 4)
- 8 I/O channels (upgradable to 32)
- I/O channels can be used for operations like pocket indexing, shutter activation, and sweep selection

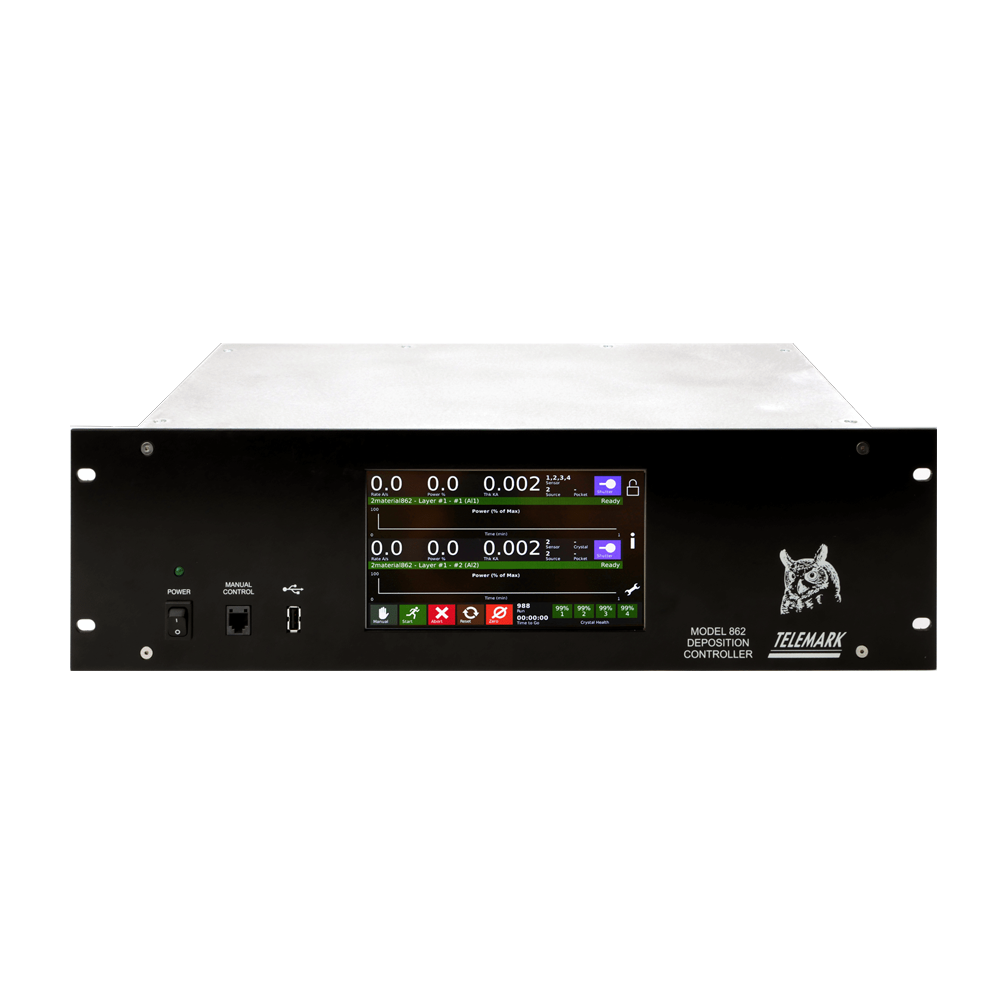

Model 862 Deposition Controller
Same features as the 861 but in a chassis with 7-inch touchscreen and capabilities to control co-deposition, average up to 4 sensors simultaneously
Brochures
Manuals
detailed information
- High frequency internal reference oscillator provides <0.01A resolution for aluminum
- Operates with 5 MHz or 6 MHz crystals
- All new innovative crystal oscillator design for outstanding stability and noise immunity
- Extensive materials library, also allowing for user definable materials
- Color LCD touch screen for graphical and numerical display of primary real-time process data, providing an intuitive and user friendly operator interface
- Touch screen capabilities: In-process parameter modification, Process and Layer editor, I/O status and control
- Real time graphical display of: Power v/s time, Rate v/s time, Thickness v/s time, Rate deviation v/s time
- All system, film and setup files may be saved via a front panel USB port, as well as uploaded to instrument
- Can accommodate up to 99 processes of 999 layers each
- Standard unit has 2 crystal sensor inputs and 2 isolated rate control analog output drivers, expandable to 4 each.
- 8 relay isolated outputs and 8 optically isolated inputs (active or passive mode), with the option to upgrade to 32 ea., for ancillary operations such as pocket indexing, sweep selection and sensor selection.
| Model 861 | Model 862 | |
|---|---|---|
| Co-Deposition |  |  |
| Crystal Averaging | | |
| Oscillator Included | | |
| Hand-Held Remote Included | | |
| Display | 5-inch Color LCD Touchscreen | 7-inch Color LCD Touchscreen |
| Sensor Crystal Frequency | 5 or 6 MHz | 5 or 6 MHz |
| Resolution | <0.02Hz (<0.01A for Al @ 6MHz) | <0.02Hz (<0.01A for Al @ 6MHz) |
| Accuracy | +/- 0.5% thickness | +/- 0.5% thickness |
| Thickness Display | 0.000 - 999.9 kÅ | 0.000 - 999.9 kÅ |
| Power Display | 0.0 - 99.9 % | 0.0 - 99.9 % |
| Rate Display | 0.0 - 999 Å/s | 0.0 - 999 Å/s or 0.00 - 999 Å/s |
| Measurement Update | 10 per second | 10 per second |
| Control signal Update | 10 per second | 10 per second |
| Inputs | 8 standard (32 max.) optically isolated, active (12 to 24V DC), or passive (contact closure) | 8 standard (32 max.) optically isolated, active (12 to 24V DC), or passive (contact closure) |
| Outputs | 8 standard (32 max.) relay contacts, max 2A, 50 DC | 8 standard (32 max.) relay contacts, max 2A, 50 DC |
| Analog Outputs | 2.5, 5 or 10 volts @ 20 ma. 0.002% resolution | 2.5, 5 or 10 volts @ 20 ma. 0.002% resolution |
| Power Input | 90-264 VAC, 47-63 Hz | 90-264 VAC, 47-63 Hz |
| Rack Height | 2U (3.5 inches, 88mm) | 3U (5.25 inches, 133mm) |

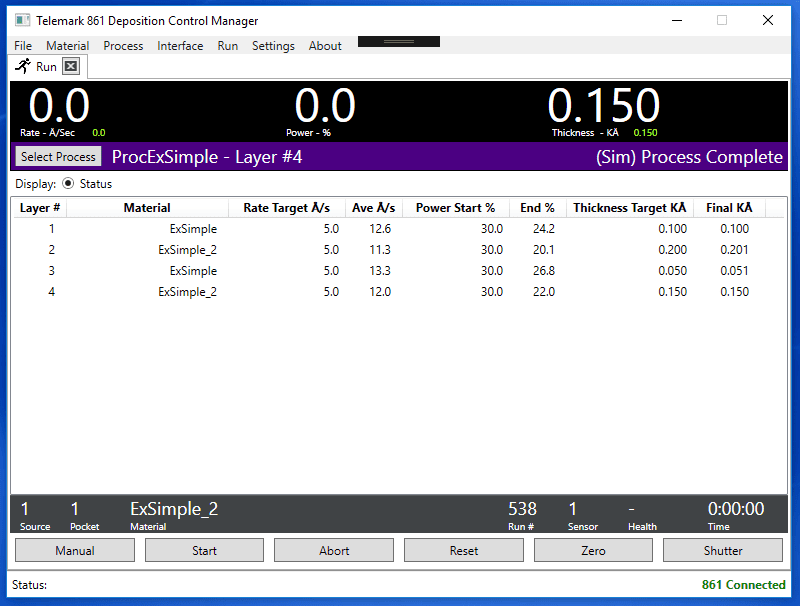

Windows DCM Software

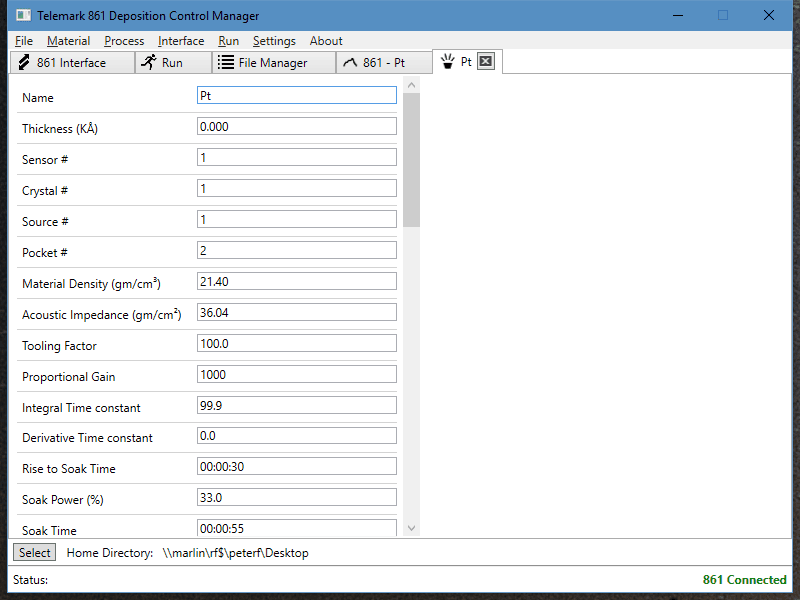

The DCM software can create and edit Processes and Materials on a Windows computer that can be transfer via USB to the 861 or 862. When connected via RS-232 or Ethernet can edit processes and materials directly on the 861 or 862 and it can remotely operate the 861 or 862.
When the DCM software is connected it automatically makes two files in the working directory for each process run, a summery file that includes averages and a file with the stream of data of Rate, Rate Deviation, Power, and Thickness.
